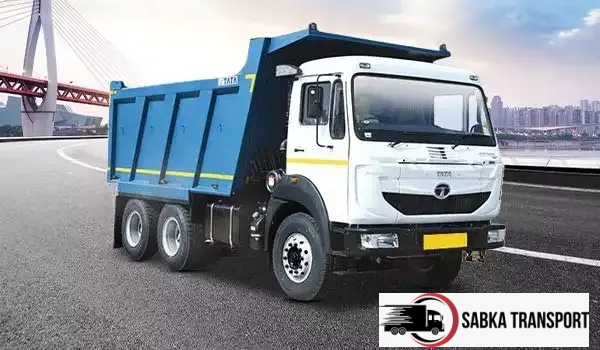

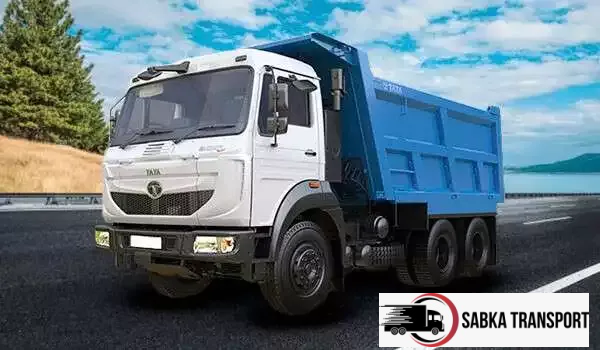

Tata Signa 2823.K HD 9S
Key Specifications
16000 KG
Capacity220 HP
Engine300 Ltrs.
Fuel Capacity6
N0. of CylinderTATA G1150, 9 Forward + 1 Reverse with crawler
Gear Box₹ 45.47 Lakh
PriceDESCRIPTION Tata Signa 2823.K HD 9S
Tata Signa 2823.K HD 9S Tipper Price in India:-
Tata Signa 2823.K HD 9S Tipper price in India is Rs. 42.27 Lakhs - Rs. 45.47 Lakhs*. In addition, Truck Junction can provide you the Tata Signa 2823.K HD 9S Tipper on road price in your city.
Tata Signa 2823.K HD 9S Tipper Engine Capacity:-
Tata Signa 2823.K HD 9S engine capacity is 5600 CC. As a result, it delivers a power of 220 HP with 850 NM torque. Furthermore, The engine of this Tipper is aligned with a 380 mm Dia Push type Single Plate Dry Friction Organic Lining. It has a TATA G1150, 9 Forward + 1 Reverse with crawler type of gearbox.
Tata Signa 2823.K HD 9S Tipper Mileage:-
This Tata Signa 2823.K HD 9S Tipper mileage is 2.75-3.75 KMPL, and is fitted with a fuel tank capacity of 300 litres. It provides the Tipper a good driving range.
Tata Signa 2823.K HD 9S Tipper GVW & Payload Capacity:-
Tata Signa 2823.K HD 9S Tipper GVW (Gross Vehicle Weight) is 28000 KG. Also, it has a payload capacity of 16000 KG allowing users to carry a good amount of load.
Tata Signa 2823.K HD 9S Tipper Body Cabin:-
This Tata Signa 2823.K HD 9S Tipper offers a Customizable body option. In addition, this Tipper has a Chassis with Cabin type of chassis and a Day Cabin type of cabin.
Tata Signa 2823.K HD 9S Tipper Wheelbase:-
The Tata Signa 2823.K HD 9S Tipper wheelbase is 3880 MM, which provides high-balance driving. Also, the Tata Signa 2823.K HD 9S Tipper has 295/95 D20 front tyres and 295/95 D20 rear tyres. This configuration tires provide the Tipper with good grip.
Get latest Tata Signa 2823.K HD 9S on road price Dec 30, 2024.
Specifications
-
EngineCummins ISBe 5.6 BS6
-
Engine NormBS-6
-
Power220 HP
-
Engine Cylinders6
-
Max Torque850 Nm
-
Fuel Tank300 Ltrs.
-
GVW28000 KG
-
Payload Capacity16000 KG
-
Mileage2.75-3.75 KMPL
-
Load Body Size16 m3 Box
-
Wheelbase3880 MM
-
BrakesNew iCGT Brakes
-
Parking BrakesYes
-
Front AxleForged I beam reverse elliot type - drop beam
-
Rear AxleSingle reduction, extra heavy duty, hypoid gears, fully floating axle shafts with differential lock
-
Front SuspensionSemi elliptical leaf spring suspension
-
Rear SuspensionTML bogie suspension with anti roll bar
-
AbsNo
-
Clutch380 mm Dia Push type Single Plate Dry Friction Organic Lining
-
GearboxTATA G1150, 9 Forward + 1 Reverse with crawler
-
SteeringPower Steering
-
TransmissionManual
-
Power SteeringYes
-
Body OptionCustomizable
-
Chassis TypeChassis with Cabin
-
Seating CapacityDriver + 2 Passenger
-

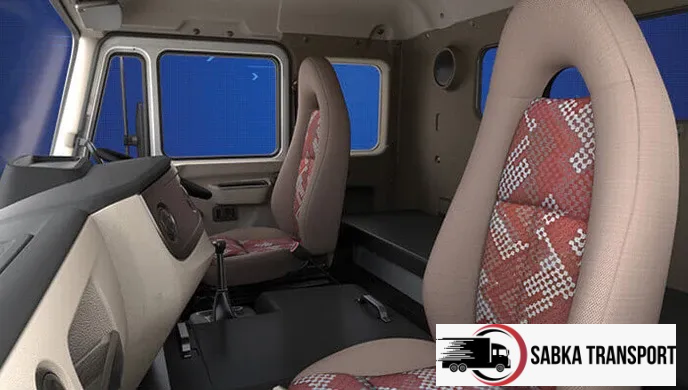

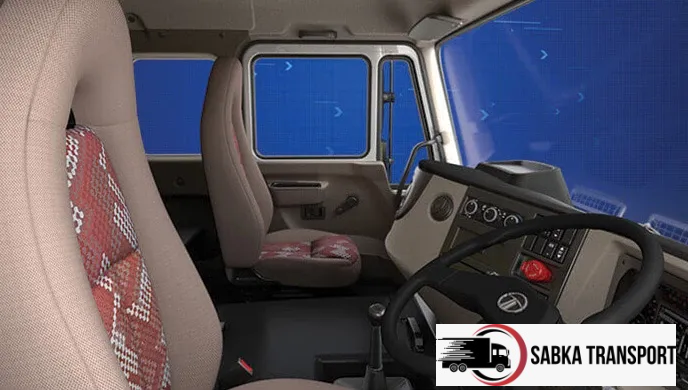

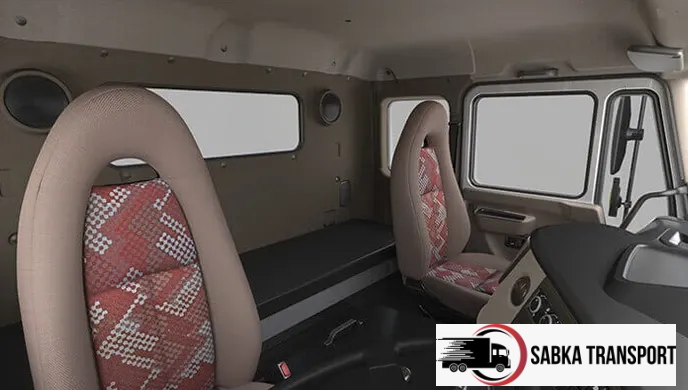

Cabin TypeDay Cabin
-
Tiltable SteeringYes
-
Tiltable Cabinyes
-
Arm RestNo
-
Front Tyre295/95 D20
-
Rear Tyre295/95 D20
-
Tubeless TyreNo
-
Air ConditionBlower
-
Seat BeltsYes
-
Seat TypeStandard
-
Hill HoldNo
-
Fog LightsNo
-

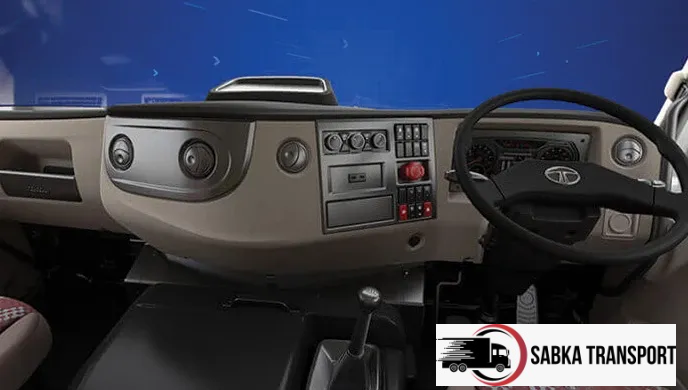

Driver Info DisplayYes
-
Adjustable Driver SeatYes
-
Navigation SystemNo
-
TelematicsNo
-
Cruise ControlNo
FAQ'S
Ans. Tata Signa 2823.K HD 9S price starts from Rs. 42.27 lakhs*.
Ans. Tata Signa 2823.K HD 9S is available in Diesel variants and its fuel tank capacity is 300 litres.
Ans. The Tata Signa 2823.K HD 9S GVW is 28000 kg.
Ans. The payload or maximum loading capacity of a Tata Signa 2823.K HD 9S is NA kgs.
Ans. The maximum power of a Tata Signa 2823.K HD 9S is 219 HP, maximum torque is 850 Nm and engine capacity is 5600 cc.
Ans. Tata Signa 2823.K HD 9S comes with Manual transmission and has a wheelbase of 3880 mm.
